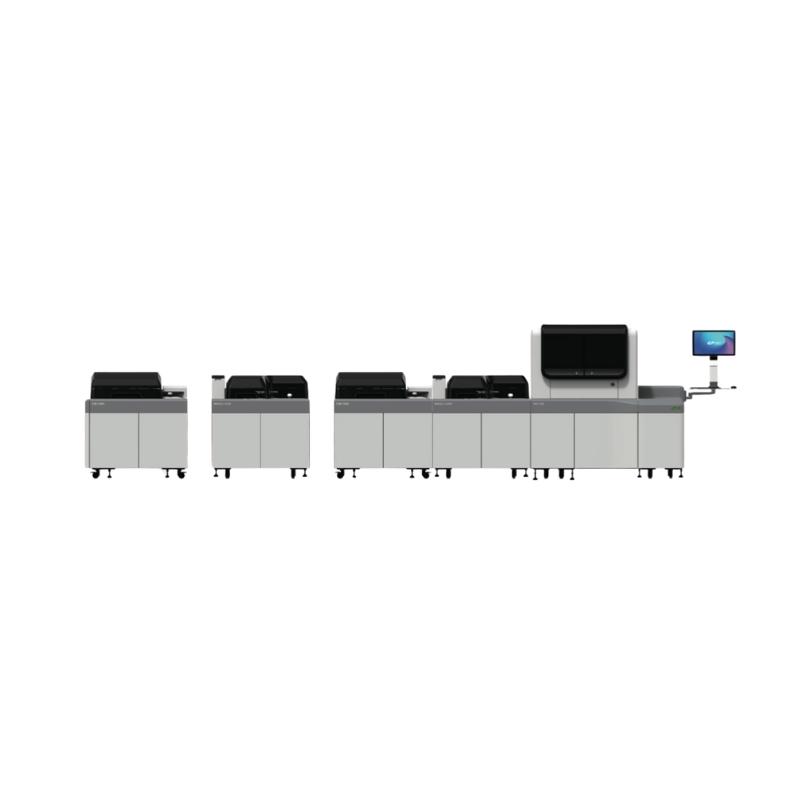

Metis 6000 Modular System Integrated Clinical Chemistry and Immunochemistry
Metis 6000 is a powerful modular system that integrates Clinical Chemistry (CM-1000) and Immunochemistry (MAGICL 6200) analyzers with optional Pre-analytical module (SHC 200). Designed for flexibility and efficiency, it allows combinations of 1 to 4 modules and handles high-throughput testing in compact lab spaces.
Main Features
| Metis 6000 Modular System | |
|---|---|
| System Type | Fully Automated Modular Clinical Chemistry & Immunochemistry Analyzer |
| Module Combination | Supports up to 4 modules: CM-1000 (Clinical Chemistry), MAGICL 6200 (Immunochemistry), SHC 200 (Pre-Analytical) |
| Clinical Chemistry Throughput | 1000 T/H; ISE module optional with 400 T/H |
| Immunochemistry Throughput | 400 T/H; First result in 10 minutes |
| Pre-Analytical Module | SHC 200: Centrifuge & Decapper, 320 samples/hour |
| Sample Management | 190 sample positions, 3-track system (regular/emergency/return), 500 samples/hour transfer |
| Chemistry Reagent Tray | Outer: 63 positions; Inner: 40 positions (20/70 mL); Cooling with compressor antifreeze |
| Immunoassay Reagent Tray | 30 positions, 2–8°C air circulation cooling |
| Reagent Recognition | RFID with dynamic monitoring |
| Sample Volume | 1.5–50 μL (CM-1000), 5–150 μL (MAGICL 6200) |
| Reagent Volume | 10–450 μL (CM-1000), 5–150 μL (MAGICL 6200) |
| Reaction Cuvettes | 270 for CM-1000 (quartz/plastic), 2000 for MAGICL 6200 |
| Temperature Control | 37 ± 0.5°C (both modules), solid heating |
| Software | Smart task dispatch, real-time consumable detection, emergency insertion support |
| Testing Methods | Rate, endpoint, fixed-time (CM-1000); Chemiluminescence sandwich/competitive (MAGICL 6200) |
| Tube Compatibility | 13×75 mm, 13×100 mm, Hitachi cups |
| Automation Features | Auto decapping, barcode scanning, real-time monitoring, refrigerated centrifugation |
| Optional Module | SHC 200: Centrifuge + Decapper (auto leveling, auto warning) |
| Power Supply | 200V–240V~, 50/60Hz |
| System Footprint | Dual module: 3970×1150 mm; Max 4-module: 6170×1150 mm |
