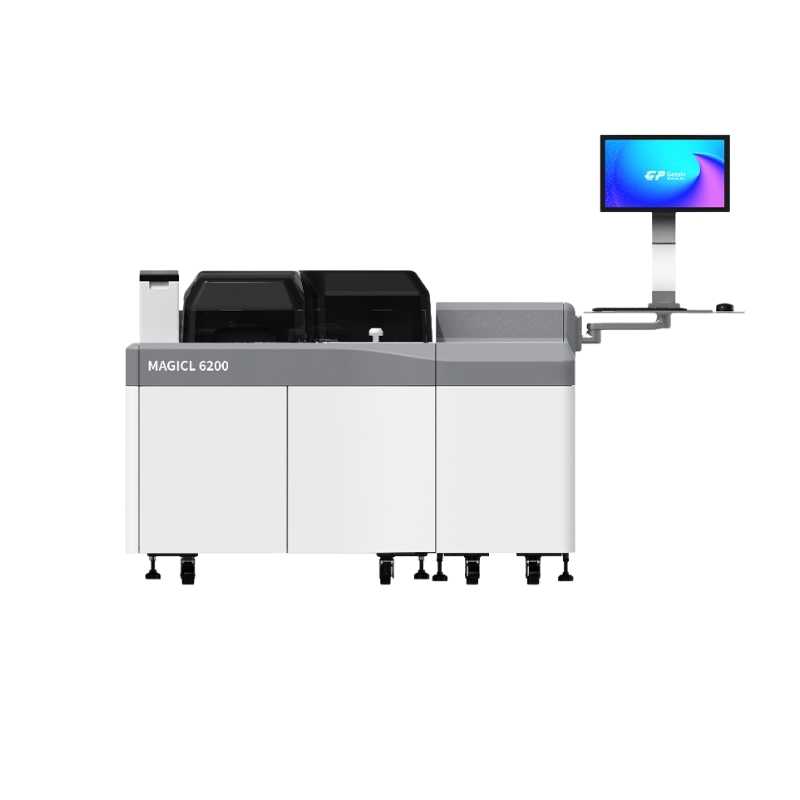

MAGICL 6200 Chemiluminescence Immunoassay Analyzer
A Reliable and Automatic Chemiluminescence Solution
The MAGICL 6200 is a fast and innovative chemiluminescence immunochemistry analyzer designed for medium to high-volume laboratories. It offers a convenient one-step chemiluminescence testing solution. Built to meet the core needs of large labs, the MAGICL 6200 helps boost efficiency, productivity, and quality.
Main Features
Key Features
- Fast and Accurate Tests with Small Footprint
- High throughput of 400 T/H to meet the needs of various hospitals and labs
- Compact design that maximizes space efficiency
- Flexible Expansion for Modular System
- Supports expansion with centrifuge, decapper, and analysis modules
- Allows combination of up to 4 analysis modules to serve multiple labs
- High Automation Level
- Automatic sample loading and scanning
- Automatic weight balancing in centrifuge module, no manual operation needed
- Intelligent Software System
- Supports auto-dilution and auto-retests
- Monitors real-time instrument status, testing status, reagent levels, and consumables
Technical Specifications
- Methodology: Acridinium ester direct chemiluminescence
- Analysis Methods: Sandwich method, competition method
- Test Items: 118 items, up to 85 tested simultaneously
- Test Speed: Up to 400 T/H
- Fastest Time for the First Result: 12 minutes
- Sample Volume: 10 μL to 150 μL (1 μL increments)
- Sample Loading: By tracks including sample, return, and emergency tracks
- Maximum Loading Capacity: 190 sample positions
- Reagent Volume: 10 μL to 150 μL (0.1 μL increments)
- Reagent Tray: 30 reagent positions
- Cooling Function: Internal air circulation cooling (4–8℃)
- Cuvettes: Mainstream circular cuvettes, up to 2000 stored in hopper
- Incubation Temperature: 37 ± 0.2°C
- Preheating Time: Less than 15 minutes
- Magnetic Separator Cleaning: Four-step magnetic separation and cleaning
- Dimensions: 1100 mm (L) × 930 mm (W) × 1200 mm (H)
