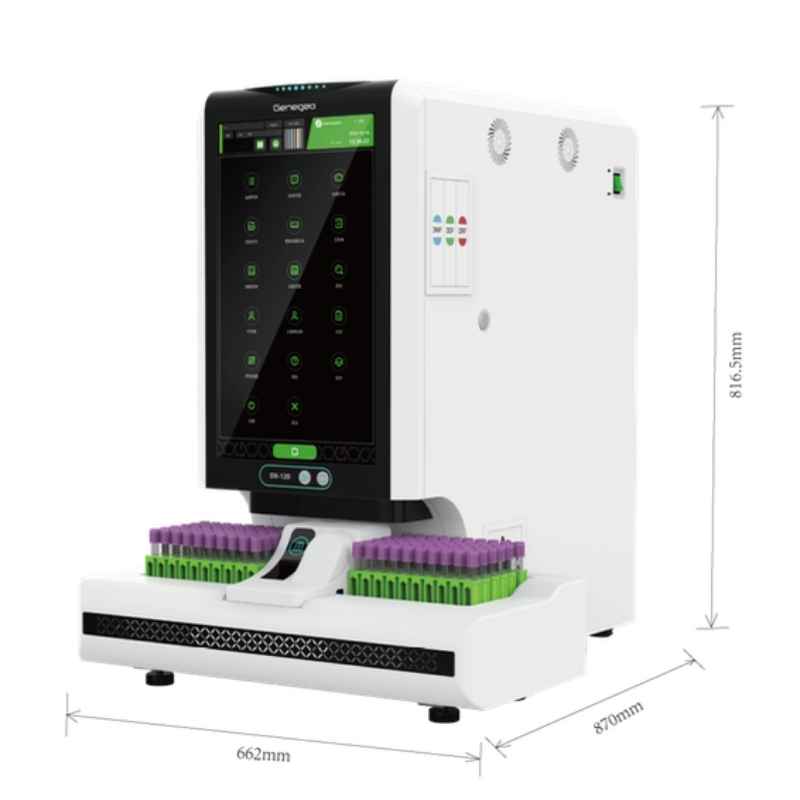

DX-120R Automatic Hematology Analyzer
The DX-120R is an advanced 5-part differential automatic hematology analyzer featuring laser flow cytometry, fluorescent staining, and sheath flow impedance detection. It offers up to 36 reportable parameters, reticulocyte analysis, and high throughput of 110 tests/hour, making it ideal for clinical labs seeking precision and efficiency.
Main Features
| DX-120R Automatic Hematology Analyzer – Key Features | |
|---|---|
| Measurement Principle | Laser flow cytometry + fluorescent staining + sheath flow impedance detection |
| Testing Modes | 7 modes: CBC, CBC+DIFF, CBC+DIFF+RET, CBC+RET, RET, CBC+RET/PLT-8X, CBC+DIFF+RET/PLT-8X |
| RET Channel | Yes – Reticulocyte testing supported |
| Specific Protein | Not supported |
| Throughput | CBC+DIFF: 110 T/H; CBC+DIFF+RET: 74 T/H; Body fluid mode: 29 T/H |
| Sample Types | Venous whole blood, pre-dilution blood, body fluid |
| Aspiration Volume | Whole blood ≤51 μL; Pre-dilution ≤85 μL; Body fluid ≤155 μL |
| Sampling Method | Automatic / Manual |
| Scattergrams & Histograms | Blood: 2 scattergrams (RBC, PLT), 3 histograms (WBC, DIFF, RET) Body fluid: 1 scattergram, 2 histograms |
| Linear Range | WBC: 0–500×10⁹/L; RBC: 0–8.6×10¹²/L; HGB: 0–260 g/L; PLT: 0–5000×10⁹/L |
| Reagents | 8+1: DXS, 10-DHL, 10-DDL, 10-DWL, 10-DWF, 10-DDF, 10-DRS, 10-DRF, DCC |
| Languages | Chinese, English |
| Sampler Capacity | 5 racks |
| Expansion | Supports modular combination into a fully automatic assembly line |
| LIS Connectivity | Supports bidirectional LIS transfer |
| Recheck Function | Single machine return or cross-machine reinspection supported |
| Air Source | Built-in |
| QC Modes | L-J, X-Bar, X-BarM floating mean QC |
| Environmental Conditions | 15℃–30℃; RH 30%–85%; Pressure 70–106 KPa |
| Power Supply | 200V–240V~, 50/60Hz |
| Dimensions | Width 662 × Depth 870 × Height 816.5 mm |
| Weight | ≤130 kg |
